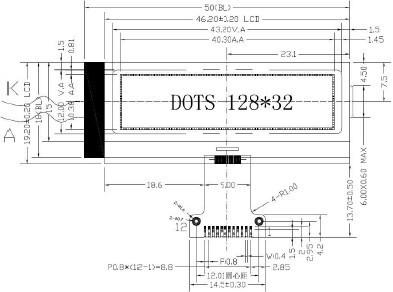

12PIN Backlight COG 12832 LCD ST7567 Controller 3.3V

12PIN Backlight COG 12832 LCD 3.3V

Characteristic
1 Structure: welding type FPC.
2 IC: ST7567, powerful function, good stability
3 Low power consumption: 1 - 100mW (not backlight is 10mA, backlight is not more than 100mW)
4 Display content:
(1) 128*32 dot matrix monochrome image;
(2) 16*16 dot matrix or other lattice images from series Chinese characters, according to the 16*16 dot matrix Chinese characters to calculate display 8 word / line *2 line. According to 12*12 dot matrix Chinese characters to calculate display 10 words / line *2 line
6 Interface: 4 line SPI serial interface
7 Working temperature: -10 - 60 degrees

8 Color: backlight

9 Working voltage: 3.0V

10 Working current: 40-100mA (5 LED)

11 Lifetime: 50000 hours (25 degree)
